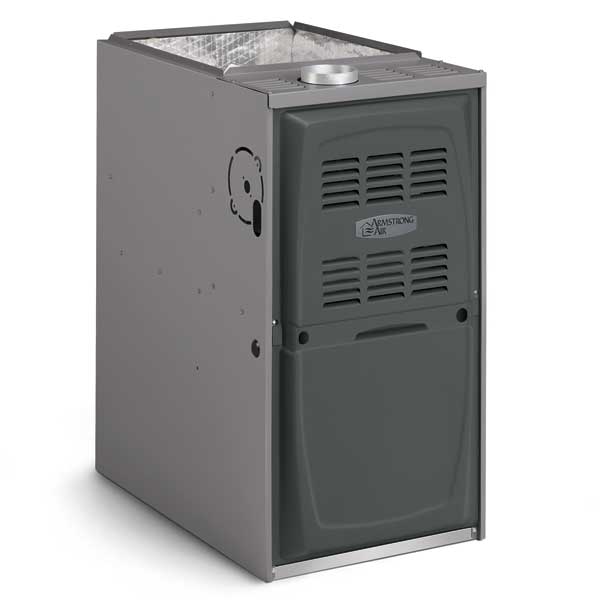

A802V Pro Series 80% Gas Furnaces

Pair this model with a Pro Series™ variable-capacity or two-stage air conditioner or heat pump and a Comfort Sync thermostat' for optimum performance. With the Pro Series' you’re in control of every aspect of your home’s climate' as well as your energy costs.

The Armstrong Air® A802V gas furnace is known and trusted by professionals across the country for its precision construction and enduring performance. It’s also appreciated by homeowners for its continuous comfort and energy efficiency. It’s one smart choice no matter how you look at it.

  • Two-Stage Heating Pair this model with a Pro Series™ variable-capacity or two-stage air conditioner or heat pump and a Comfort Sync thermostat' for optimum performance. With the Pro Series' you’re in control of every aspect of your home’s climate' as well as your energy costs.
  • Variable Speed Fan Motor By changing the speed of its airflow during start-up' your furnace can adjust humidity levels and create more even temperatures throughout your home' while enhancing efficiency and reducing operating noise.
  • Comfort Sync Thermostat When you pair this model with the Comfort Sync thermostat' the system will continuously monitor internal components for optimum performance. Comfort Sync puts you in total control of your home environment with remote temperature adjustment from anywhere in the world' even your couch' via smartphone app. When Comfort Sync detects that repairs and regular maintenance are needed' it alerts you or your dealer instantly' so your perfect environment never ends.
  • 80% AFUE Efficiency
  • Quiet Combustion Technology Uses a smaller Btu input per burner for quieter start-up and operation while providing more even heat distribution.
  • EHX Technology Every Armstrong Air furnace is engineered and built with EHX Technology' a patented design that eliminates the hot spots that can shorten furnace life. EHX Technology makes heat exchangers more durable' and with its advanced airflow system' more air contacts the heat exchanger surface area for greater heat exchange' enhancing efficiency and comfort.
MODELConfigurationInput MBtuHOutput MBtuHAFUECFMDimensions
HxWxD
Weight
Lbs.
A80US2V070A12Up / Hor. 66.0 52.0 80.0 1348 14.5x33x28.4 128
A80US2V090B12Up / Hor. 88.0 70.0 80.0 1320 17.5x33x28.4 143
A80US2V090B16Up / Hor. 88.0 70.0 80.0 1760 21x33x28.4 154
A80US2V090C20Up / Hor. 88.0 70.0 80.0 1931 21x33x28.4 173
A80US2V110C20Up / Hor. 110.0 87.0 80.0 2024 21x33x28.4 181
A80US2V135D20Up / Hor. 132.0 105.0 80.0 2024 24.5x33x28.4 199
A80US2V070A12LUp / Hor. Low Nox 66.0 52.0 80.0 1348 17.5x33x28.4 143
A80US2V090B16LUp / Hor. Low Nox 88.0 69.0 80.0 1760 21x33x28.4 154
A80US2V110C20LUp / Hor. Low Nox 110.0 87.0 80.0 2024 21x33x28.4 181
A80DS2V070A12Downflow 66.0 52.0 80.0 1408 14.5x33x28.4 130
A80DS2V090B16Downflow 88.0 69.0 80.0 1760 17.5x33x28.4 153
A80DS2V110C20Downflow 110.0 87.0 80.0 1898 21x33x28.4 173

Warranty Information

  • All Parts for 120 months - With prompt online registration
  • Heat Exchanger - Limited Lifetime

Available Documents

158-16169.pdf (Consumer Literature, Color)
158-16170.pdf (Specification Sheet, Technical Information)
